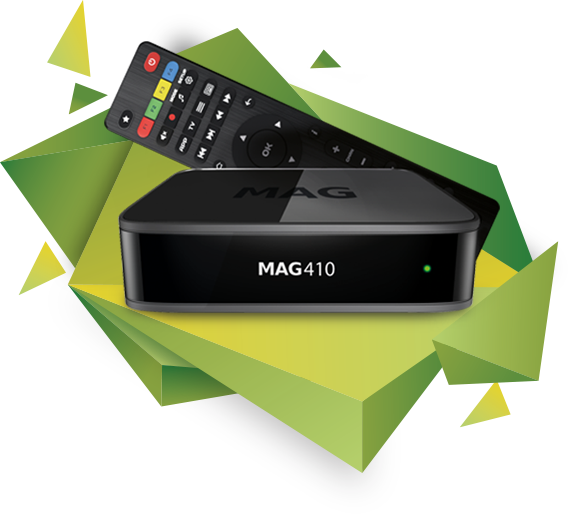

UHD Set-top Box for AndroidTM MAG410
Is the first next-generation model of cost-efficient UHD STB’s from Infomir. The device runs on Android OS and fully meets the most stringent requirements of the IPTV/OTT market. This high-performance STB is powered by a quad-core Cortex-A53 CPU and comes with 2 GB RAM and 8 GB Flash on board, which enable it to easily play and store high-definition videos. HEVC support makes it possible to dramatically reduce the network load even while transferring large data amounts. MAG410 is also equipped with 3 USB ports and an integrated
Wi-Fi module.
4K and HEVC support, built-in Wi-Fi module (b/g/n 1x1), OS Android 6.0.1,
2 GB RAM, 8 GB Flash.
* Android is a trademark of Google LLC.
New model MAG
Specifications
Dimensions
| Width/depth/height, mm | 110х110х27 |
| Weight, g | 222 |
Hardware
| Chipset | AmL S905X |
| Processor | ARM Cortex A53 Quad Core CPU 1500 MHz |
| GPU | Mali 450MP |
| Performance | 15 000 DMIPS |
| RAM | 2 GB |
| Flash memory | 8 GB |
Software
| Operating system | Android 6.0.1 |
| CAS/DRM option | Widevine |
| Middleware supported | Pre-integrated with Ministra Middleware from Infomir. The operator can integrate own applications into the image, customize or replace the image completely. |
Interfaces

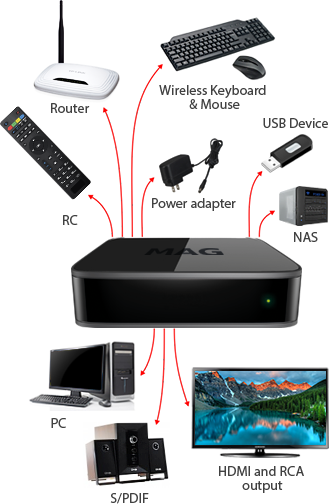

| HDMI 2.0a with HDCP 2.2, optical S/PDIF audio output, Ethernet 100 Mbit/s, 3 x USB 2.0 Type A, Micro SD slot, Wi-Fi 1T1R, single-band 802.11n, Bluetooth 4.1, 3.5 mm, 17 mm input for CVBS video and L/R audio, RCU IR, red, greed LED |
Sources of media content
| PC and NAS in a local network, Stream media protocols (RTSP, RTP, UDP, HTTP), USB devices |
Audio & video
| Audio сodecs | MPEG-1 I/II, MPEG-2 II, III (mp3), Dolby Digital Plus, AAC-LC, HE-AAC v1, HE-AAC v2 |
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p (4k), 1080i, 1080p, 720p, 576p, 480р, PAL, NTSC |
| Video сodecs | H.265 HEVC MP-10@L5.1 до 4K x 2K@60 fps, VP9 Prole-2 до 4K x 2K@60 fps, H.264 AVC HP@L5.1 до 4K x 2K@30 fps, H.264 MVC до 1080p @60 fps, PAL, NTSC |
| Video containers | MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT |
| Image formats | JPEG, PNG, BMP, GIF, RAW |
| Subtitles | built-in |
Standard set
| MAG410 STB, HDMI cable, remote control, AAA batteries — 2 pcs, packaging, 5V 2A power adaptor, user manual. |
New generation of MAG Set-Top Boxes
