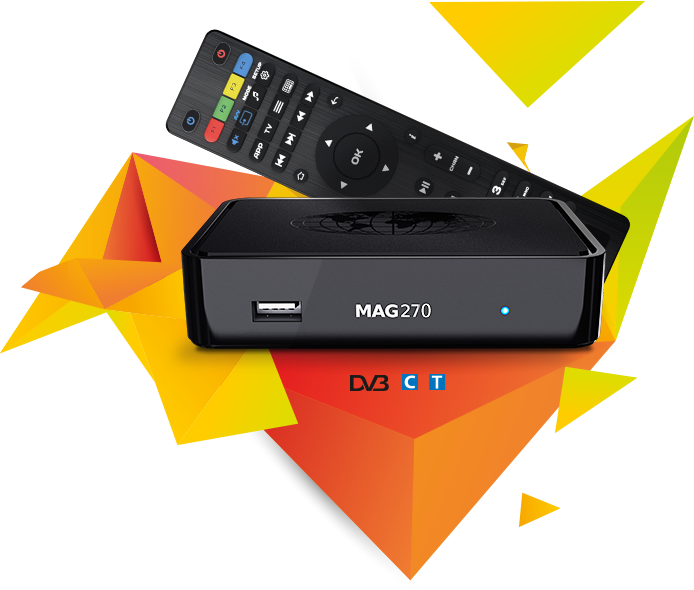

IPTV SET-TOP BOX MAG270
>MAG270 hybrid Set-Top Box is a cross-functional solution for telecommunication operators on the market. By providing IPTV and OTT services, cable operators can enlarge their client database. Internet providers can offer highly-demanded digital television services to their clients.
STiH273 650 MHz, Linux 2.6.23, Composite AV, HDMI 1.4, USB 2.0 x 2, DVB-C, DVB-T, Ethernet, Wi-Fi ready
Specifications
Dimensions
| Width/depth/height, mm | 127/87/30 |
| Weight, g | 190 |
Hardware
| Processor | STiH273 |
| RAM | 512 MB |
| Flash memory | 256 MB |
Software
| Operating system | Linux 2.6 |
| Built-in Media Portal with WebKit-based IPTV-functionality HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK | |
| Middleware supported | Ministra TV-platform |
Interfaces
| HDMI 1.4-output, Composite + stereo A/V output, Ethernet 100 Mb/s, USB 2.0 (WiFi-adapter can be connected) |
Sources of media content
| PC and NAS in local network Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP) USB-devices, DVB-C, DVB-T |
Audio & video
| Audio сodecs | MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3) |
| Audio formats | MP3, MPA, M4A, WMA (optional), Ogg, WAV |
| Video modes | 1080i, 1080p, 720p, 576p, 480р, PAL, NTSC |
| Video сodecs | MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), XviD; HD video supporting (up to 40 Mbit/s and above) |
| Video containers | MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT |
| Image formats | JPEG, PNG, BMP, GIF, RAW |
| Subtitles | DVB, SRT, text MKV |
| Playlist formats | M3U |
Standard set
| MAG270 Set-Top Box, user manual, Mini jack cable to RCA (A/V), Power adapter 12V 1A, remote control, 2 AAA batteries, packaging |
New generation of MAG Set-Top Boxes
