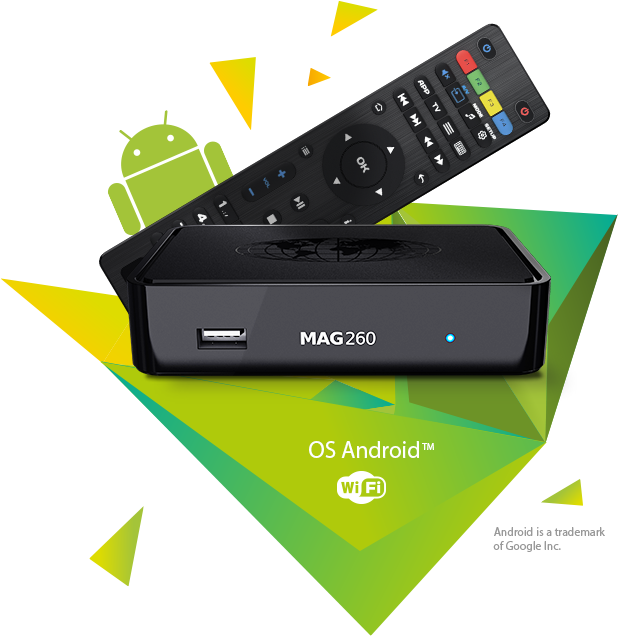

IPTV SET-TOP BOX MAG260
The Set-Top Box MAG260 uses Android OS, currently the most popular operating system. The new model is designed for forward thinking operators, who develop their own applications. MAG260 has a set of standard functions for Linux STB, but also enables users to download and install other applications through a user friendly interface.
A20 Dual core Cortex A7, Android 4.2, S/PDIF, Composite AV, HDMI 1.4A, USB 2.0 x 2, micro SD, Ethernet, built-in Wi-Fi
Specifications
Dimensions
| Width/depth/height, mm | 127/87/30 |
| Weight, g | 190 |
Hardware
| Processor | A20 Dual core Cortex A7 |
| RAM | 1 GB |
| Flash memory | 4 GB |
| Video | Mali 400 MP2 |
Software
| Operating system | Android 4.2 |
| Android 4.2 ARM architecture Install APK files from SD card and Google Play Store. Multilingual GUI Multitasking Support Google browser, Flash10 and HTML5. | |
| Middleware supported | StbEmulator (emulates JS API for MAG200/MAG260) for Ministra, Netup, SmartLabs, Netris support. |
Interfaces
| Audio output S/PDIF HDMI 1.4-output Composite + stereo A/V output Ethernet 100 Mb/s USB 2.0 Built-in Wi-Fi 2.4GHz b/g/n 150Mb MicroSD slot |
Sources of media content
| PC and NAS in local network. Unicast, Multicast. Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP) USB-devices, microSD cards. |
Audio & video
| Audio сodecs | MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3) |
| Audio formats | MP3, MPA, M4A, WMA (optional), Ogg, WAV |
| Video modes | 1080i, 1080p, 720p, 576p, 480р, PAL, NTSC |
| Video сodecs | MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), XviD; HD video supporting (up to 40 Mbit/s and above) |
| Video containers | MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT |
| Image formats | JPEG, PNG, BMP, GIF, RAW |
| Subtitles | DVB, SRT, text MKV |
| Playlist formats | M3U |
Standard set
| MAG260 Set-Top Box, user manual, Mini jack cable to RCA (A/V), Power adapter 12V 1A, remote control, 2 AAA batteries, packaging |
New generation of MAG Set-Top Boxes
